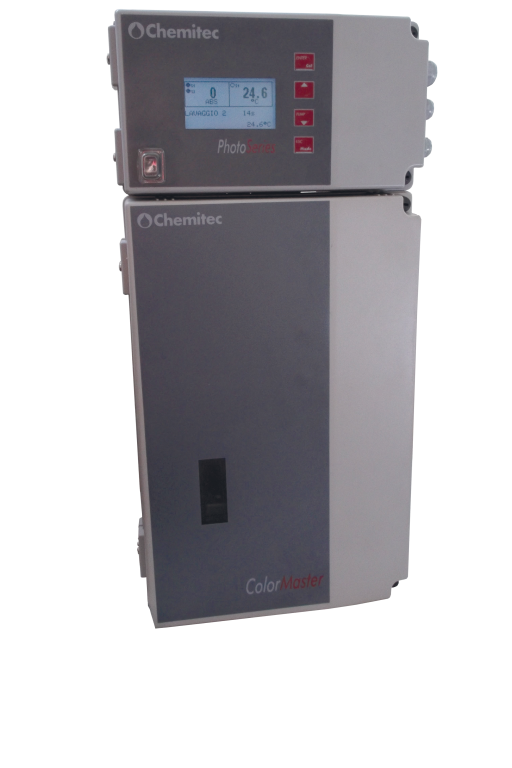

Analizador Color Master
CHEMITEC
Analizador On-line COLOR MASTER para análisis de color, con rango 0-500 Pt-Co. El sistema más parecido a la medición en laboratorio. Su funcionamiento es mediante reactivos y los intervalos de medida son configurables. La manera más precisa de realizar la medición de este producto.
Software &
Funciones
No hay software o funciones relacionadas disponibles.
Descargas relacionadas
Información técnica
| Absorbance measuring | 0…500 ABS |
|---|---|
| Resolution | 0.01 ABS |
| Accuracy | 1% f.s. |
| Temperature measuring | 0…50°C |
| Resolution | 0.1 °C |
| Accuracy | 1% f.s. |
| Wavelenght | 445 nm (others on demand) |
| Analogue outputs | Four (4) 0/ 4…20 mA galvanically isolated |
| Quantity | Absorbance, Temperature |
| Programming limits | lower / upper / reverse |
| Maximum load | 500 Ohm |
| Alarm output | NAMUR 2.4 mA (with range 4…20mA) |
| Set point relay outputs | Four (4) with direct feeding of users max 100VA Two (2) for Absorbance; One (1) for Temperature; One (1) for Alarm |
| ON – OFF | 0…500 ABS |
| Programming | Daily activation with programming of switching on and off hour. Relay max resistive load 3A at 230Vac |
| Alarm relay output | closed / open relay max resistive load 3A at 230Vac |
| ON – OFF | cumulative for min/max, set point delay, faults (no water sample,reagents finished,projector burned, cell dirty) |
| Delay time | 00:00…59:99 mm:ss with minimum steps of 15 seconds |
| Thresholds disabling | active |
| Digital inputs | Two (2) clean contact and 220 Vac for disabling dosages |
| Analogue input | One (1) optional 0/4…20 mA for auxiliary measurements |
| Power supply | 85…265Vac 50-60Hz |
| Power consumption | 30 W |
| Electrical protection | CEI EN 61010-1 |
| Mounting | Wall |
| Dimensions (L x H x P) | 276 x 514 x 126,5 mm |
| Mounting depth | 126,5 mm |
| Housing | ABS Grey RAL 7045 |
| Front panel | UV Resistant Polycarbonate |
| Weight | 4 Kg |
| Operating temperature | 0…50 °C |
| Recording interval | -25…65 °C |
| Humidity | 10…95% non-condensing |
